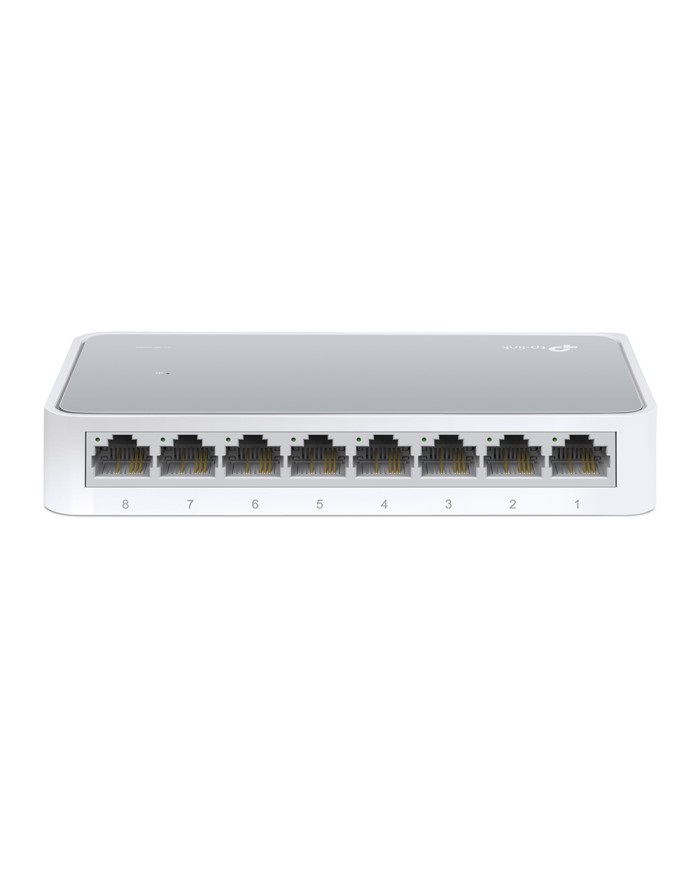

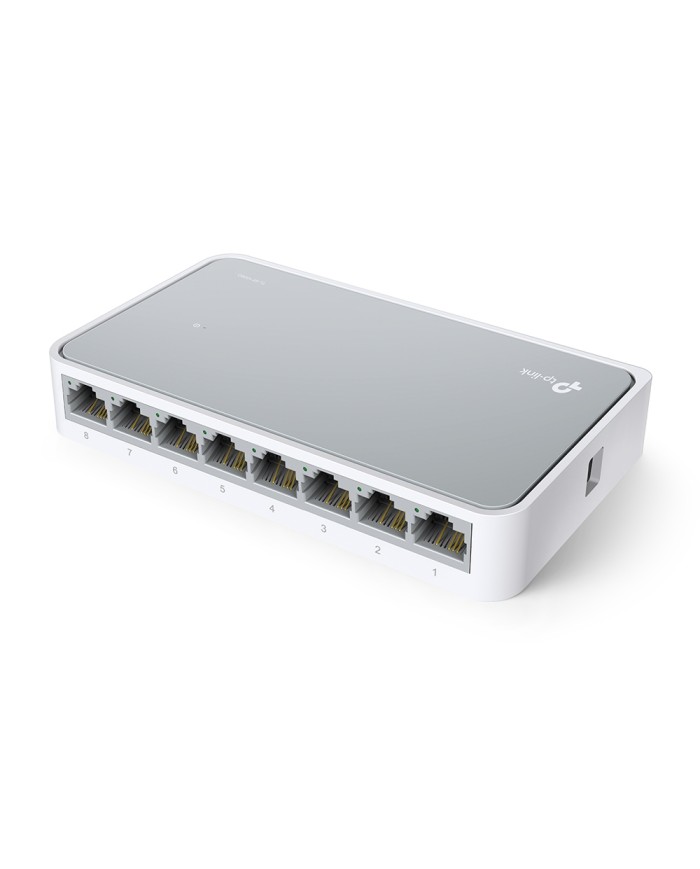

TP-LINK TL-SF1008D 8-Port 10/100Mbps Desktop Switch

Reviews (0)

8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop design
Plug and play, no configuration required

Compare Add to Wishlist Size Guide

Description

What This Product Does

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

High Performance

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Product Details

SPECIFICATION: TL-SF1008D

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Interface	8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity	Fanless
Power Supply	External Power Adapter(Output: 5.0VDC / 0.6A)
External Power Supply	100-240VAC, 50/60Hz
Buffer Size	768Kb
Data Rates	10/100Mbps at Half Duplex ; 20/200Mbps at Full Duplex
LED Indicator	Power, 1, 2, 3, 4, 5, 6, 7, 8
Dimensions ( W x D x H )	5.33.10.9 in. (134.57922.5mm)
Max Power Consumption	2.05W(220V/50Hz)
Max Heat Dissipation	6.99BTU/h

SOFTWARE FEATURES
Transfer Method	Store and Forward
Advanced Functions	Green Technology 802.3X Flow Control, Back Pressure

OTHERS
Certification	FCC, CE, RoHS
Package Contents	8-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
